Battery-Powered Hydraulic Lifting Table For Railway Vehicle Bottom Maintenance

Battery-Powered Hydraulic Lifting Table For Railway Vehicle Bottom Maintenance With a Lifting Capacity of 10 tons

Application scope:
The Hydraulic Lifting platform is mainly used to dismount the components underneath railway vehicles, and transfer the dismounted component out from the vehicle bottom.

Technical parameters:

(*Remarks: The above parameters are indicative and can be modified as per customer's actual requirements.)

Machine features:

• Electric-hydraulic drive mode.
• Four-wheel drive, four-wheel steering. Mecanum wheels, strong and durable, with synchronous adjustment function.
• The 4 wheels can travel and turn stably in the range of ±90°.
• The platform surface is provided with non-slip mat.
• The platform has floating function. It can be horizontally and longitudinally shifted by ±100 mm and ± 3 ° when the walking wheel is locked.
• It can be reliably positioned at any height and preventing sudden drop and self-locking when the hydraulic system fails.
• The battery can continuously work more than 8 hours. With battery charging device.
• Wired remote control device, with automatic take-up device to collect the surplus cable into the cable box.
• Four flashing lights are installed at the four corners of the equipment, and the lights will be on after the equipment is started.
• With emergency buttons at the 4 equipment corners and on wired remote to stop the equipment in case of emergency.
• Equipped with support brackets for maintenance use. The brackets will be manually installed during maintenance.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, our company is responsible for free maintenance only due to design defects, manufacturing quality, and quality of purchased parts. The company provides the required replacement parts (except for consumable parts). After the warranty period, repairs only are charged at the cost price.

Cooperation contact:
If you are interested in our products or any assistance required, please feel free to contact us for more information.

10T battery powered transfer cart

800mm battery powered transfer cart

10T motorized transfer cart

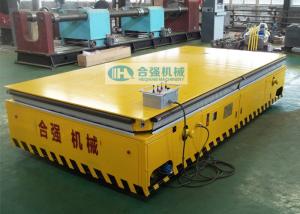

Battery-Powered Hydraulic Lifting Table For Railway Vehicle Bottom Maintenance Images
